Trash Sludge Sewage Pumps
PRICE: $1,869.00 (inc GST)

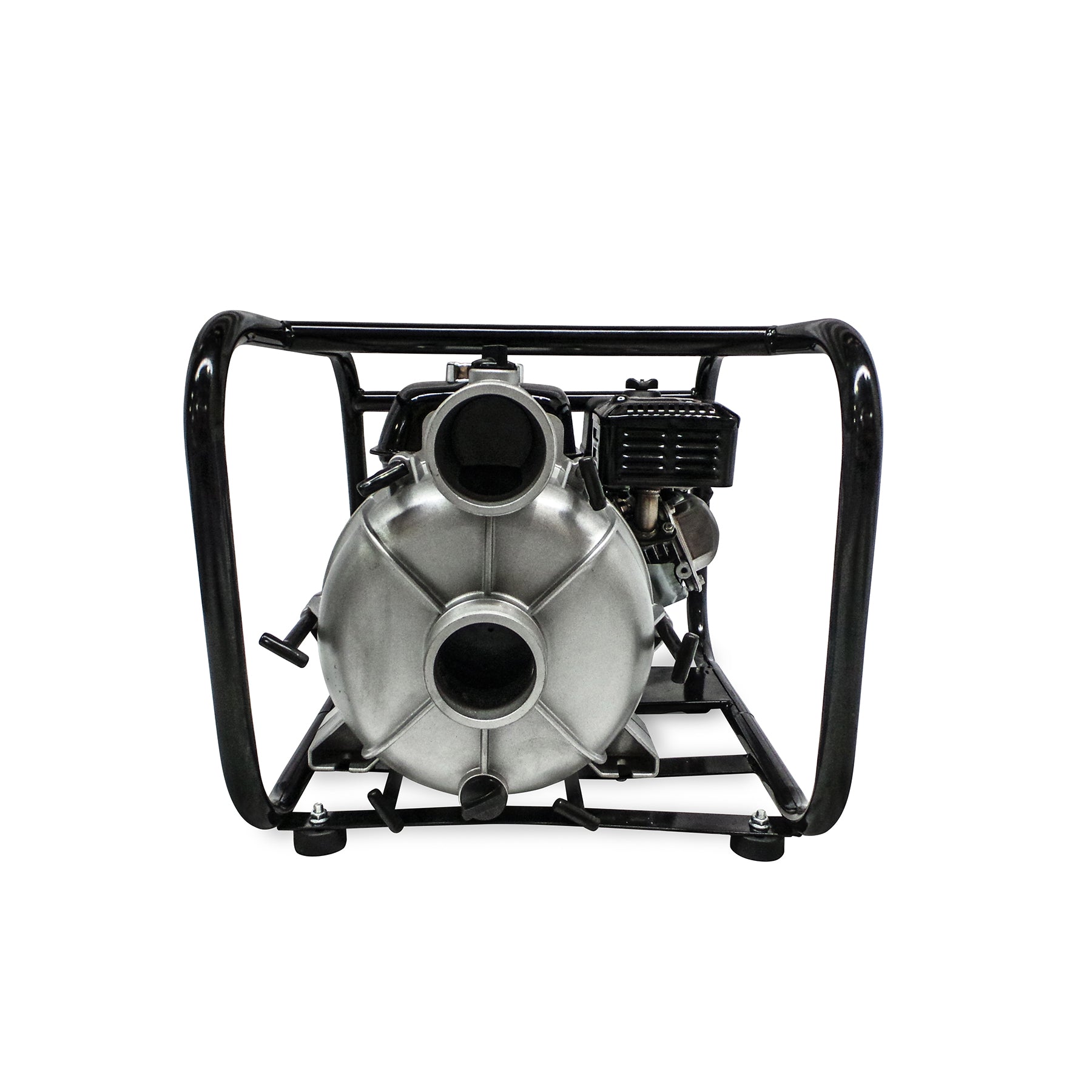

Engine driven trash pumps manufactured by Paddock Machinery. Powered by Honda engine reliability this range of trash and sewage pumps are perfect for the dirty jobs that other pumps won't handle. Ideal for construction sites where water clarity can't be guaranteed as well as emergency flood relief, be prepared with a heavy duty pump/engine combination.
Heavy Duty Honda Engine Pumps for Trash Operations
- Suited to sludge, sewage and services with high solids loading
- Large 3" suction and discharge ports
- Options on engine sizes from GX160 5hp to GX270 9hp
- Steel roll-over cage protection
- Heavy cast steel pump liner and impellers for long lasting performance
- Quality Honda unleaded petrol 4 stroke commercial engines
- Electric start available on some models
Pump Details:
These are a trash style of pump, meaning they are suitable for use with dirty waters with higher then typical solids loading. This style of pump is ideal for applications where the quality of water can not always be guaranteed. These pumps still have exceptional performance however are built with heavier wetted components to resist wear when compared to pure water transfer pumps.
Whilst the pump outer body is a cast alloy, inside you will find a steel liner and cast steel impeller. These key components are made of hardened steel to outperform other pumps in terms of robustness.
The SHWPWT30X model pump is supplied with the Honda GX160 engine and this makes for a very easy to use and relocate unit which is popular for sewerage pumping applications. The NBR rubber seals are long lasting in septic service making it a handy pump for the worst of environments.
The larger SHWPWT30H model comes with the Honda GX270 commercial engine to deliver a extremely heavy duty and powerful trash and sludge pump combination. This unit is capable of handling solids up to 30mm in diameter and features a easy open and access pump housing making cleaning and servicing simple.
Engine Details:
The Honda GX series of 4-stroke commercial engines are world renown for being workhorse engines with extreme reliability. Honda engines are always easy to start and are very well supported with Honda dealers and spare parts kept in every corner of the continent. For a ultimate in reliability stick with the Honda GX series of engines.
| Specifications | SHWPWT30X | SHWPWT30H | SHWPWT30HE | SHWPWT40HE | |
|---|---|---|---|---|---|
| Honda Engine | GX200 | GX270 | GX390 | ||
| Engine Type | 4-Stroke Commercial Series | ||||
| Engine Power | 5.8 hp | 9 hp | 13 hp | ||
| Fuel | Unleaded Petrol | ||||
| Fuel Tank | 3.1 L | 5.3 L | 6.1 L | ||
| Starter | Recoil | Electric ** | Electric ** | ||
| Pump Inlet / Outlet | 75mm (3") | 100mm (4") | |||
| Max. Flow (L/hr) | 45,000 | 72,600 | 135,000 | ||
| Discharge Head (m) | 25 | 30 | 27 | ||
| Discharge Pressure (Approx) | 245 kPa (35 psi) | 294 kPa (42 psi) | 264 kPa (29 psi) | ||
| Max. Suction Lift | 7m | 8m | 8m | ||
| Wetted materials |
NBR seals Cast iron impeller Aluminium pump casing |
||||
| Warranty | 36 months Engine / 12 months Pump | ||||
** Note: Battery and power leads are not included on the electric start model and and the responsibility of the customer to acquire.
