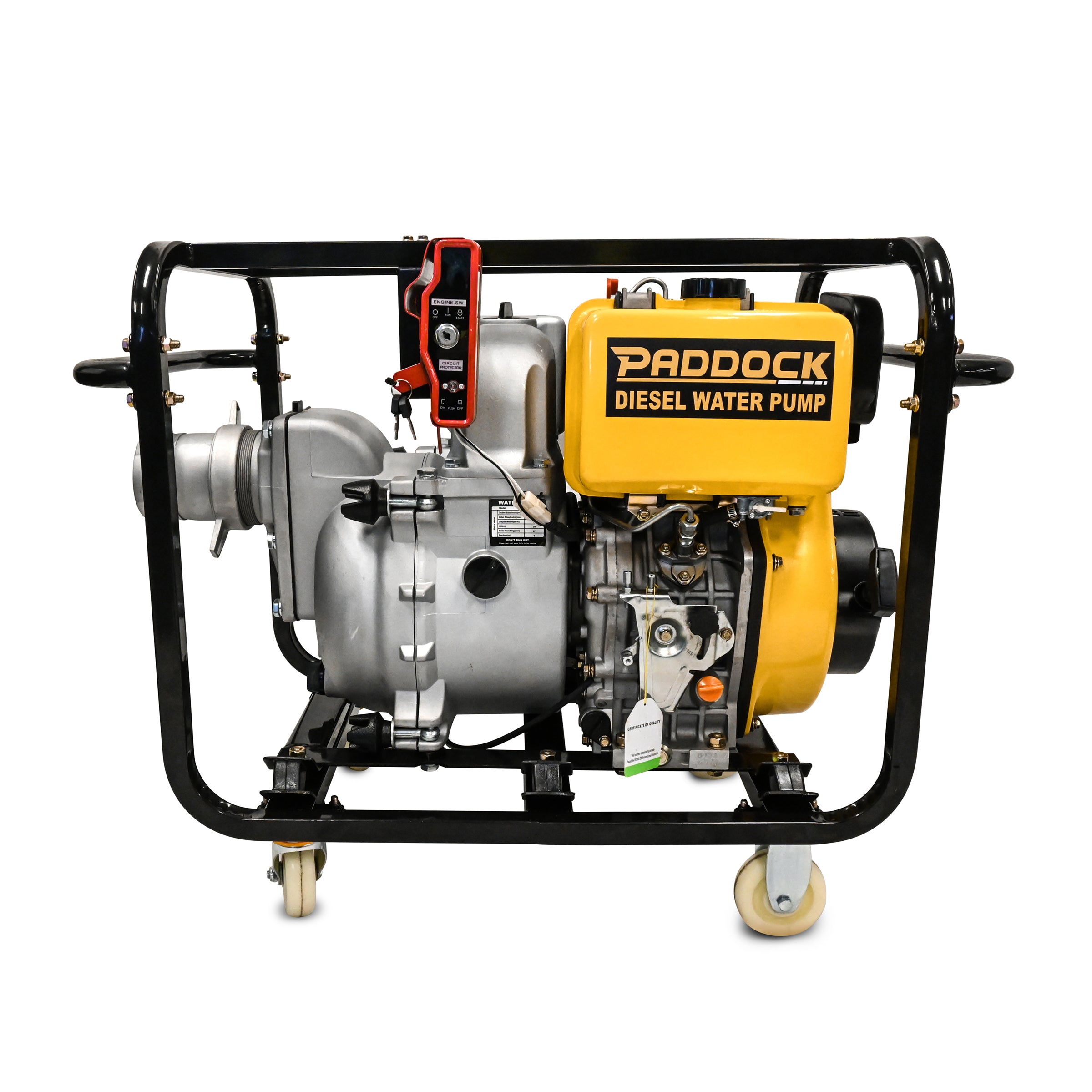

Diesel Engine Trash Water Pumps
PRICE: $2,999.00 (inc GST)
The range of diesel engine driven trash water pumps by PADDOCK Machinery offer exceptional performance at a realistic price. These pump and engine combinations have been designed to move water around your farm, property, business or construction site with ease.
Electric Start Diesel Engine Driven Dirty Water Trash Series Pumps
These pump packages are compact yet still pack a serious punch with massive transfer flow rates and high diesel engine efficiency and reliability.
The skids and roll frame make relocating these pumps a breeze and they are suitable for portable or fixed installations.
All packages are electric key start with recoil backup meaning even if you haven't used your pump for a extended period and the onboard battery has run flat, you can still get the pump working via the reliable pull cord.
The pumps are ideal for emergency situations where water needs to be moved fast. The heavy duty trash pump design allows for a amount of debris to be present without impacting the pumps performance.
Trash Pump Series
- Heavy Duty Pump Construction
- Easy open wet end pump casing for clearing our large debris
- Discharge lift up to 25m
- Flow rates up to 78,000 L/hr
- Suited to dirty water applications
Trash Pump Series
| Specification | STPD080 | STPD100 |
|---|---|---|
| Pump Style |
Trash Features easy access wet end pump casing for clearing large debris and inspecting impeller. |
Trash Features easy access wet end pump casing for clearing large debris and inspecting impeller. |
| Inlet / Outlet | 80mm (3") | 100mm (4") |
| Max. Flow Rate | 58,000 L/hr | 78,000 L/hr |
| Max. Discharge Head |
25 m | 24 m |
| Max. Discharge Pressure |
245 kPa 35 PSI |
235 kPa 34 PSI |
| Suction Lift | 6 m | 6 m |
| Solids Handling | Up to 25mm | Up to 27mm |
| Engine |
Diesel 10 hp 186 Single-cylinder, Vertical, 4-Stroke, Direct-injection |
Diesel 12 hp 192 Single-cylinder, Vertical, 4-Stroke, Direct-injection |
| Diesel tank capacity | 5.5 L | 5.5 L |
| Run time per tank | 1.9 hrs | 1.7 hrs |
| Starter | Electric key with recoil backup | Electric key with recoil backup |
| Additional Features | Includes transport wheels Includes 12v starter battery |
Includes transport wheels Includes 12v starter battery |
| Dimensions (LxWxH) | 645 x 500 x 620mm | 645 x 500 x 620mm |
| Weight | 100 kg | 125 kg |
| Warranty | 2 yrs | 2 yrs |
