Diesel Drive Water Pumps
PRICE: $1,869.00 (inc GST)
The range of diesel engine driven water transfer pumps by PADDOCK Machinery offer exceptional performance at a realistic price. These pump and engine combinations have been designed to move high volumes of water around your farm, property, business or construction site with ease.

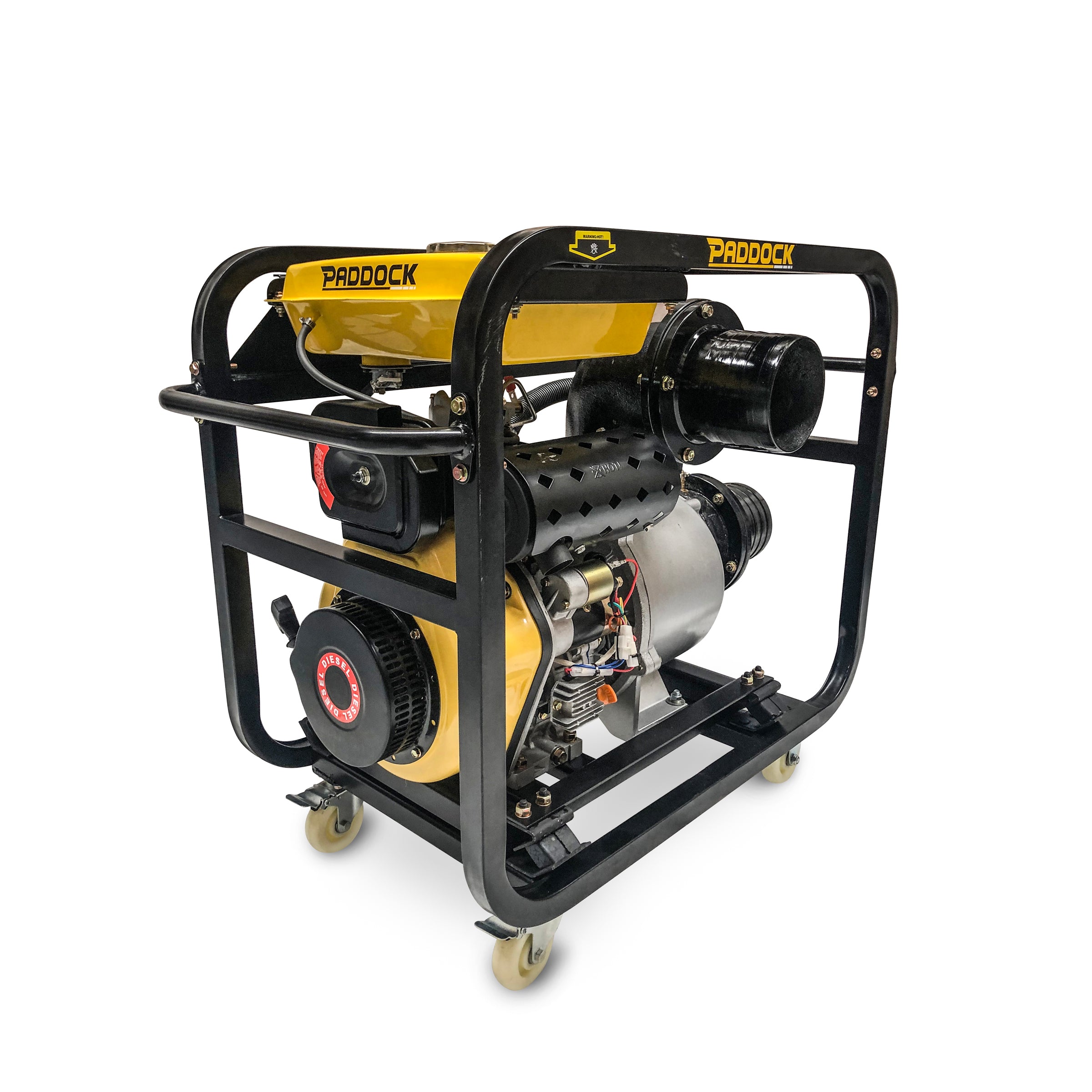

Electric Start Diesel Engine Driven Water Transfer Pumps
These pump packages are compact yet still pack a serious pouch with massive transfer flow rates and high diesel engine efficiency and reliability.
The skids have wheels which are great for applications where the pump is regularly being relocated. If you have a permanent installation, they can quickly be removed allowing for the frame to be bolted in a single position.
All packages are electric key start with recoil backup meaning even if you haven't used your pump for a extended period and the onboard battery has run flat, you can still get the pump working via the reliable pull cord.
The packages are ideal for emergency situations where water needs to be moved fast.The high volume pumps have been carefully selected and coupled to the required horsepower diesel engine to optimise the packages output.
High Volume Water Transfer Series:
- Electric start diesel engine with recoil back up
- Higher transfer rates from engineered pump/engine solutions
- Steel roller over frame with removable transport wheels
- Simple air cooled engine solutions
- Easy access to spare and consumable parts
- 2 yr warranty
High Pressure Fire Fighter Series
- Discharge lift up to 80m
- Flow rates up to 80,000 L/hr
- Exceptional build quality and packed with features
Water Transfer Series
| Specification | SWPD050 | SWPD080 | SWPD100 | SWPD150 |
|---|---|---|---|---|
| Inlet / Outlet | 50mm (2") | 80mm (3") | 100mm (4") | 150mm (6") |
| Flow Rate | 30,000 L/hr | 60,000 L/hr | 85,000 L/hr | 200,000 L/hr |
| Discharge Lift |
25 m | 28 m | 25 m | 15 m |
| Suction Lift | 7 m | 7 m | 7 m | 6 m |
| Engine |
Diesel 4.5 hp Single-cylinder, Vertical, 4-Stroke, air-cooled, Direct-injection |
Diesel 6.5 hp Single-cylinder, Vertical, 4-Stroke, air-cooled, Direct-injection |
Diesel 10 hp Single-cylinder, Vertical, 4-Stroke, air-cooled, Direct-injection |
Diesel 13 hp Single-cylinder, Vertical, 4-Stroke, air-cooled, Direct-injection |
| Diesel tank capacity | 2.5 L | 3.5 L | 5.5 L | 15 L |
| Run time per tank | 2.5 hrs | 2.5 hrs | 2.5 hrs | 6 hrs |
| Starter | Electric key with recoil backup | Electric key with recoil backup | Electric key with recoil backup | Electric key with recoil backup |
| Additional Features | Includes transport wheels Includes 12v starter battery |
Includes transport wheels Includes 12v starter battery |
Includes transport wheels Includes 12v starter battery |
Includes transport wheels |
| Dimensions (LxWxH) | 550 x 470 x 545mm | 550 x 470 x 575mm | 645 x 500 x 620mm | 910 x 580 x 770mm |
| Weight | 48 kg | 56 kg | 69 kg | 98 kg |
| Warranty | 2 yrs | 2 yrs | 2 yrs | 2 yrs |
High Pressure Fire Fighter Series
| Specification | SWPD050HP | SWPD080HP | SWPD100HP |
|---|---|---|---|
| Inlet / Outlet | 50mm (2") | 80mm (3") | 100mm (4") |
| Flow Rate | 30,000 L/hr | 42,000 L/hr | 80,000 L/hr |
| Discharge Lift |
75 m | 80 m | 50 m |
| Suction Lift | 7 m | 7 m | 7 m |
| Engine |
Diesel 6.5 hp Single-cylinder, Vertical, 4-Stroke, air-cooled, Direct-injection |
Diesel 10 hp Single-cylinder, Vertical, 4-Stroke, air-cooled, Direct-injection |
Diesel 11 hp Single-cylinder, Vertical, 4-Stroke, air-cooled, Direct-injection |
| Diesel tank capacity | 3.5 L | 5.5 L | 5.5 L |
| Run time per tank | 1.8 hrs | 1.9 hrs | 1.7 hrs |
| Starter | Electric key with recoil backup | Electric key with recoil backup | Electric key with recoil backup |
| Additional Features | Includes transport wheels Includes 12v starter battery |
Includes transport wheels Includes 12v starter battery |
Includes transport wheels Includes 12v starter battery |
| Dimensions (LxWxH) | 550 x 470 x 575mm | 645 x 500 x 620mm | 645 x 500 x 620mm |
| Weight | 60 kg | 70 kg | 72 kg |
| Warranty | 2 yrs | 2 yrs | 2 yrs |
